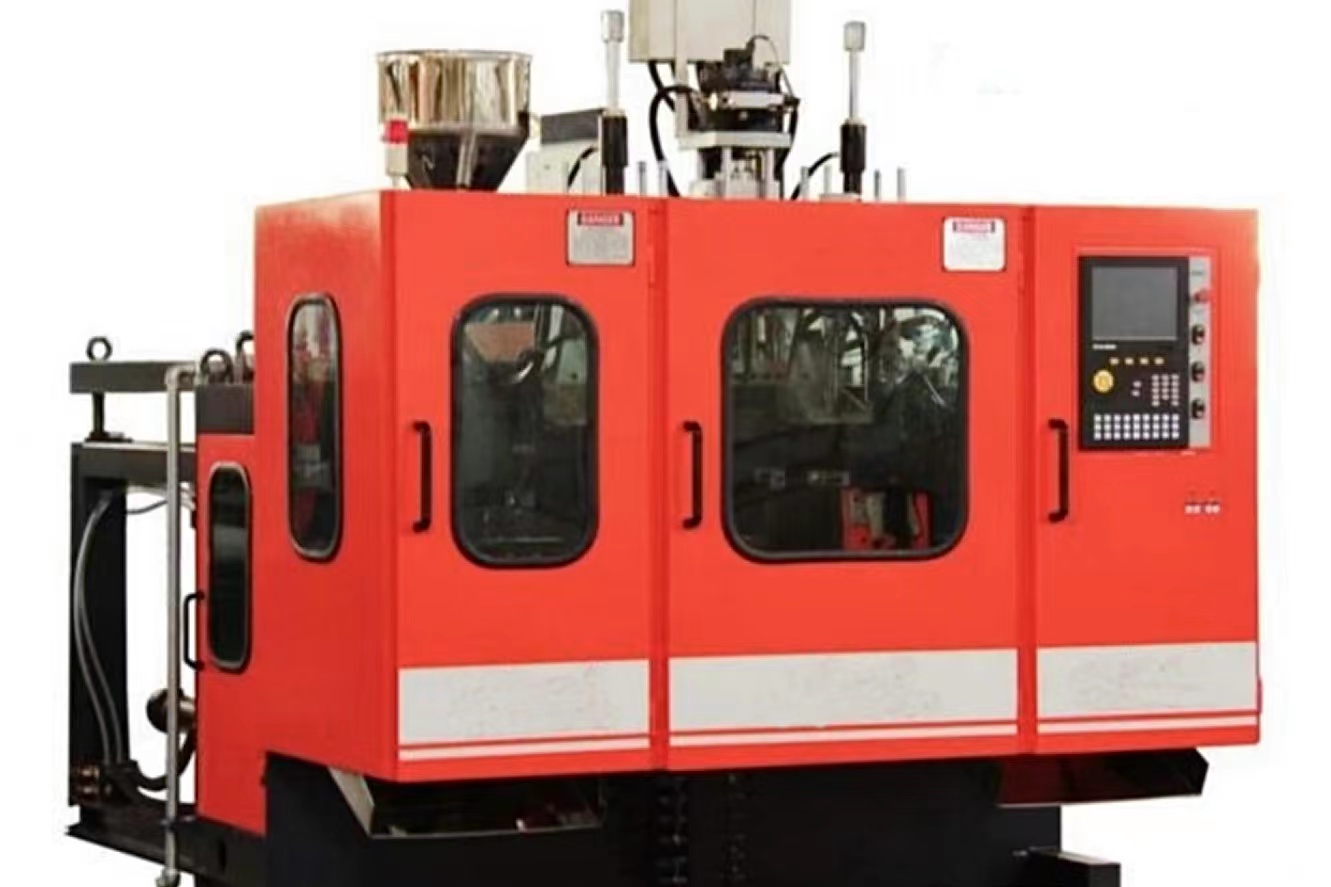

Double Stations Blow Molding Machine

Equipment name: Double Stations Blow Molding Machine

Material: Aluminum Alloy

Function: produce PVC cuff for anesthesia mask by blow molding production process semi-automatically, transparent, non-toxic, also improve efficiency and reduce labor cost.

Machine Features:

1. Head type: one or double stations optional.

2. Capacity: 400pcs/hour.

3. Applicable for materials PE, PP, PVC.

4. Maximum product volume: single die head 2L.

5. System clamping force: 37KN.

6. Template spacing: 130-400.

7. Template size: 280x390 mm.

8. Mold shift stroke: 370.

9. Oil pump motor power: 7.5kw.

10. The length to diameter ratio: 24.

11. Air source pressure/displacement: 0.8MPa/0.9 m3/min.

12. Screw diameter:φ55mm.

13. Plasticizing capacity: 50 kg/hour.

14. Number of heating sections/power: 11KW.

15. Motor power: 11KW.

16. Dimension (L/W/H): 2.9/1.6/2.3 cm.

17. Weight: 3.4 tons.

Inquiry

Write a Review

Product details

◆ Price terms: Fob guangzhou,.
◆ LEAD TIME: 40-50 working days.
◆ WARRANTY: 14 months since the date of loading.
◆ DELIVERY TERMS: air/sea/train way accepted.
◆ SHIPING PORT: Guangzhou, Shenzhen, Shanghai of China.
◆ PACKAGE: plywood packaging with timber support.

◆ OEM/ODM terms are accepted based on specific order terms.

◆ Payment Terms: L/C, T/T, Paypal,Payment: 30% before production, 70% before shipment.

Technical support after-sales

◆ On-line technical guidence for testing/comissioning/installation/material etc is provided whenever is needed.
◆ Paid after-sales service is optional by sending know-how engineers/technicians to your site for scheduled instruction and training; specific cost needs to be quoted after in-depth discussion between both parties due to the pandemic situation.
◆. Step-by-step technical service manual & photos & videos are made according to specific details of the site and manufacturing solution that designed so as to guarantee 100% turn-key solution.
