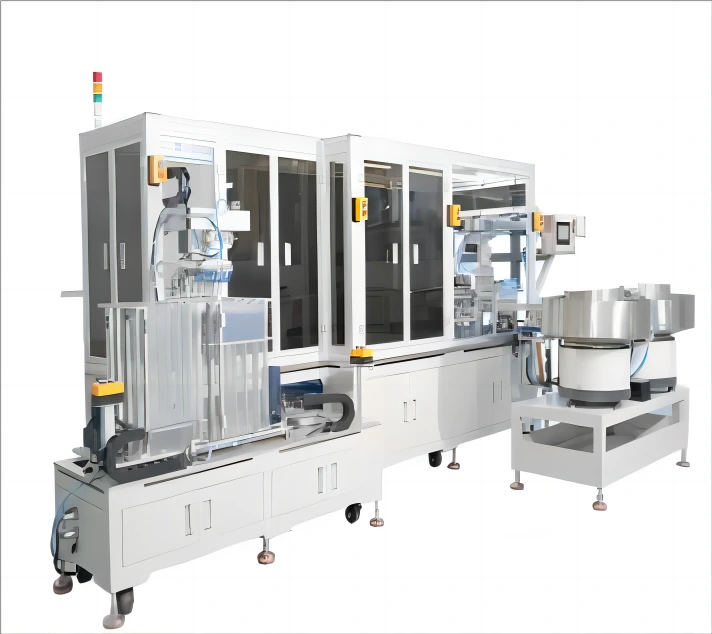

Automatic Assembly Machine for Medical Nelaton Catheter

Machine name: Automatic Assembly Machine for Medical Nelaton Catheter

Machine function:

The material can offer a wide range of urethral catheters in the same assembly

line, size from FR6-26, length from 120-400mm. It is available in a quick and easy setup when

running many gauge sizes. The machine has advanced tip-forming technology with RF

generator Deliver clean eyelet punch-outs. At the same time, this machine also has superior

vision inspection technology with high positioning setting of glue.

Machine Specification:

1. Power distribution: 220V, 20kW.

2. Machine Size:L4500*W1200*H1800MM

3. Capacity: 1200-3600pcs/hour

4. Pressure: 0.6Mpa

5. Weight: 3000KG

6. Option: Can be optionally connected with packaging machine and vision system in automatic production line.

7. Control Mode: PLC Control

Technical features:

1.Full automatic production process from material feeding to finished products discharging.

2.Unique glue technology, can achieved quantitative dispensing glue.

3.Advanced tip-forming technology with RF generator, hot punching, and surface is smoother.

4.High compatibility: Available for different sizes.

5.CCD technology can be optionally be added to detect the tip-forming size of the tube.

Inquiry

Write a Review

Product details

◆ Price terms: Fob guangzhou,.
◆ LEAD TIME: 40-50 working days.
◆ WARRANTY: 14 months since the date of loading.
◆ DELIVERY TERMS: air/sea/train way accepted.
◆ SHIPING PORT: Guangzhou, Shenzhen, Shanghai of China.
◆ PACKAGE: plywood packaging with timber support.

◆ OEM/ODM terms are accepted based on specific order terms.

◆ Payment Terms: L/C, T/T, Paypal,Payment: 30% before production, 70% before shipment.

Technical support after-sales

◆ On-line technical guidence for testing/comissioning/installation/material etc is provided whenever is needed.
◆ Paid after-sales service is optional by sending know-how engineers/technicians to your site for scheduled instruction and training; specific cost needs to be quoted after in-depth discussion between both parties due to the pandemic situation.
◆. Step-by-step technical service manual & photos & videos are made according to specific details of the site and manufacturing solution that designed so as to guarantee 100% turn-key solution.

FAQ

Q:Can you provide video installation and instruction?

A: Yes, we can provide video installation and instruction for your reference, we also can delegate technical personnels for onsite installtion if needed (but that need to charged extrally by customers).

Q: Which market do you mainly involve in?

A: Main markets of our medical disposables: Middle East, India, Southeast Asia and the USA.
Main markets of our medical manufacturing machines: Middle East, India, Southeast Asia.

Q: Do you do OEM or ODM?

A: Yes, OEM/ODM is accepted; and we propose sending us some original samples so that final products meet exactly to your expectation. Kindly note that MOQ (minimum order quantity) needs to be discussed for OEM/ODM terms.
